Coffee Urn: Coffee Amounts, Cup Sizes and How to Use One

A brewing coffee urn makes and serves a large batch from one vessel, often using a percolator mechanism. Start with the model's fill marks and dose chart, then plan the volume your guests will actually drink: an urn cup is not necessarily a mug.

Stainless coffee urn with a dispensing tap and cups arranged for group coffee service
Open full size

Brew Snapshot

Brewing system
Often a recirculating percolator
Capacity
Model-specific cup marks and minimum fill
Dose
Use the matching manual's chart
Serving plan
People × pour size × servings
More brewing details
Method
Coffee Urn
Brew time
About 1 min/cup, 30–45 cups (Hamilton Beach)
Grind size
Coarse percolator grind (Hamilton Beach)
Equipment
Coffee urn and matching basket and stem, Coffee and measuring equipment, Water, Serving cups and heat protection
Difficulty
Simple controls; batch planning matters
Body
Varies with coffee, filtration and dose
Clarity
Basket and filter dependent
Key Takeaways
  • Choose an urn whose minimum batch suits your gathering as well as its maximum capacity.
  • Plan around the drinks people will pour: the urn’s marked cup count can be much larger than its number of full mugs.
  • Follow the model’s instructions for filling, brewing, handling hot parts and cleaning.
On This Page15 Sections

What Is a Coffee Urn?

An urn is a large vessel with a tap for group coffee service. Check whether it brews coffee or only holds prepared coffee. This guide focuses on electric brewing urns with a grounds basket and central stem. They belong to the percolator family: liquid travels up the stem, through the grounds and back into the tank during brewing.

The minimum batch is one of the first figures I look for in an urn. A generous maximum doesn't impress me if the gatherings it will serve are usually too small to run it properly. For example, Hamilton Beach's 40515R household model makes 15–45 marked cups, while West Bend's 33600 100-cup urn specifies a 40–100-cup range. Their minimum batches differ as much as their maximums.

Coffee Urns Before Electricity

Coffee urns once looked much more like their decorative name. A silverplate tea or coffee urn owned by John and Abigail Adams, now documented by the White House Historical Association, was made in England around 1785–88. It has a neoclassical vase shape typical of the period.

Coffee Urn Coffee and Water Amounts

Use the chart supplied with your particular urn. These values come directly from Hamilton Beach's 45-cup household urn manual, document 840280903. The manufacturer supplies these gram amounts.

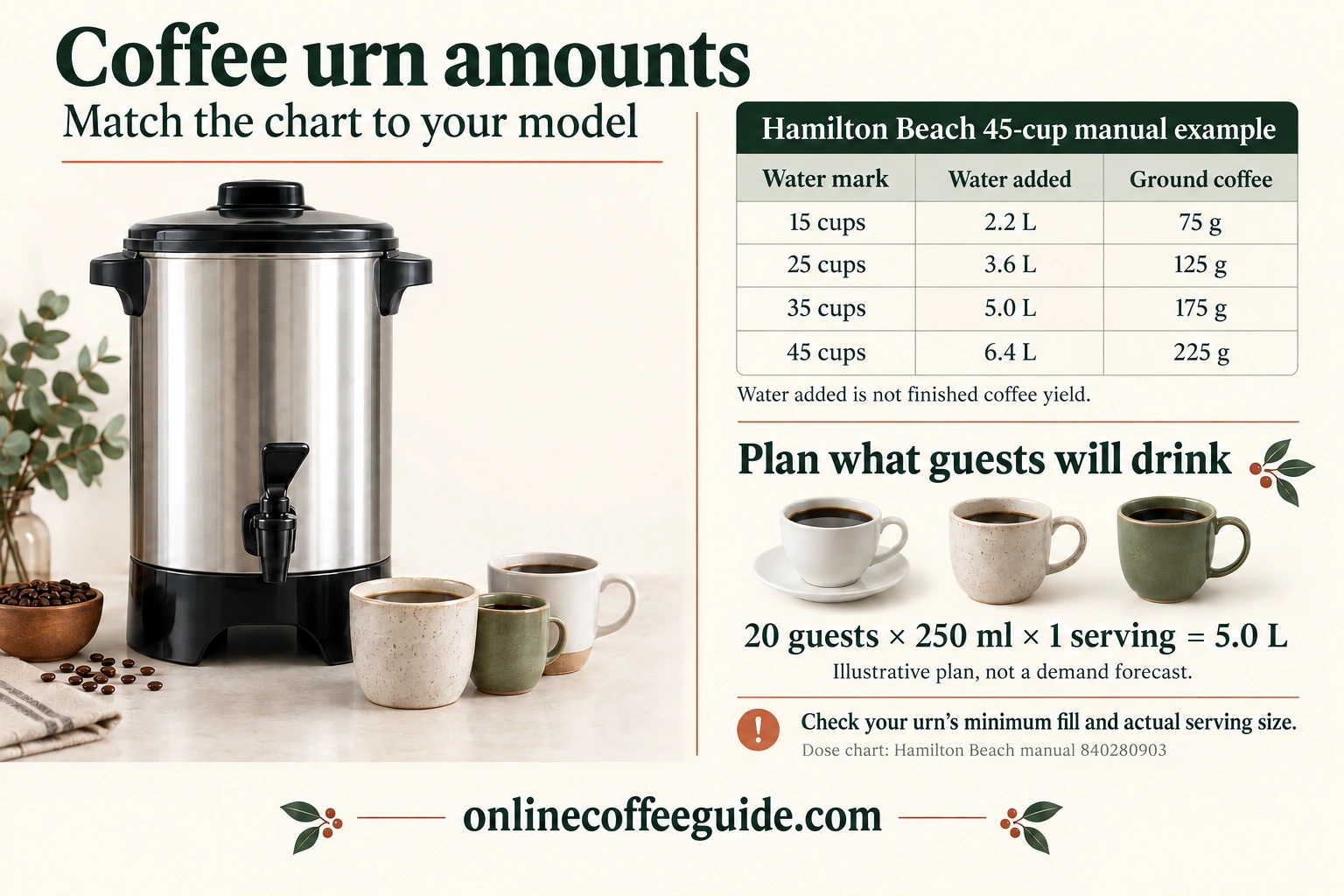

Hamilton Beach 45-cup household urn: example water marks and coffee amountsScrollable table
Hamilton Beach 45-cup household urn: example water marks and coffee amounts
Water markWater addedGround coffee
15 cups2.2 L (2.3 US qt)75 g
25 cups3.6 L (3.8 US qt)125 g
35 cups5.0 L (5.3 US qt)175 g
45 cups6.4 L (6.8 US qt)225 g
Hamilton Beach 45-cup urn marks paired with their manufacturer water inputs and ground-coffee doses.
Open full size
Match the water mark and coffee dose using the chart for this Hamilton Beach 45-cup urn.

These are water-input levels, not measured finished yields. Grounds retain some liquid. Do not read “45 cups” as 45 full 250 ml (8.5 US fl oz) mugs, or extrapolate this chart to another brand's 55- or 100-cup urn. For an urn, use its dose chart; follow a drip brewer recipe for drip coffee.

What Grind Should You Use?

For this Hamilton Beach example, choose percolator coffee; the manual specifies a coarse grind when grinding beans yourself. Another urn may permit different grounds or a particular paper filter. Check both before buying coffee for a group.

Planning Coffee Urn Servings

Plan finished coffee needed before choosing a fill mark:

Expected coffee drinkers × amount per pour × planned servings per drinker.

For example, 20 drinkers × 250 ml (8.5 US fl oz) × 1 serving = 5,000 ml, or 5.0 L (5.3 US qt), of coffee to serve. Two servings each would require 10.0 L (10.6 US qt). Adjust for your audience, other beverages and the length of service.

Then check usable brewed output, minimum fill, refill routine and cycle time. Measure the pour you intend to serve; the cup’s brim capacity may be larger. A 5.0 L (5.3 US qt) water fill will usually provide less than 5.0 L of usable coffee because the grounds retain liquid. Choose a supported batch whose measured output meets the serving plan, or plan a permitted refill; do not select the matching water mark as a promise of that finished volume. If the minimum batch exceeds your needs, smaller equipment may be more practical.

Hamilton Beach advertises about one minute per marked cup when brewing 30–45 cups on the 40515R. Setup and service time are additional. Use the ready indicator as the operational cue.

How to Use a Coffee Urn

For the named Hamilton Beach example:

  1. Fill before switching on. Add cold water within the 15–45-cup range.
  2. Assemble and dose. Wet the basket, seat the stem in the heating well and add the chart's grounds, keeping them out of the stem.
  3. Close and brew. Lock the lid, connect power and wait for the ready light.
  4. Serve and manage holding. Use the tap; the urn keeps coffee warm while connected.

Follow the matching manual for the complete procedure. Never run an empty urn or open it during brewing.

Should You Remove the Coffee Basket?

Only by your model's documented procedure. The cited Hamilton Beach manual advises removal for extended holding, using a pot holder or oven mitt. That is not permission to reach into every urn immediately after brewing. Its metal parts remain hot.

What Does Coffee from an Urn Taste Like?

The brewing urns covered here make percolator coffee: expect the roast character of the beans to be prominent, especially with a dark blend. A medium roast can give a gentler nutty or cocoa-led cup.

The basket and grind affect texture. A coarse grind suited to the appliance helps keep grounds in the basket; fines or grounds spilled into the stem can leave grit in the cup. Judge the fresh coffee first, then compare later pours.

I prefer tasting a small first pour before guests arrive, because it gives me time to choose the milk and serving plan before a whole line is waiting.

Coffee Urn vs. Batch Brew

Brewing urn and drip batch brewer: preparation and service differencesScrollable table
Brewing urn and drip batch brewer: preparation and service differences
QuestionPercolating brewing urnDrip batch brewer
Water pathRecirculates through the basket during brewingFlows through grounds into a separate receiving vessel
Serving setupUsually dispenses from the brewing tank's tapCarafe, airpot or compatible server
Planning checkMinimum fill, cup definition and holding routineBatch program, server capacity and refill routine

An urn can simplify self-service; a batch brewer can suit repeated batches into separate servers.

For portable service, BUNN's 3.0 L (101 US fl oz) lever-action airpot, model 32130.0000, is a server for prepared coffee. It has a stainless lining and a brew-through lid; check the brewer's receiving clearance and server compatibility before brewing directly into it.

Cleaning and Care

Disconnect power and let the appliance cool as directed. Clean coffee-contact parts, the tap and stem, and check the heating well. Follow the manual's cleaner, concentration and rinse instructions for residue or scale. Do not immerse an electrical urn or assume every removable part is dishwasher-safe.

Hamilton Beach lists its 990229600 heating-well cleaning tool for the 40515R. With the urn unplugged and cool, cover the well with warm water and add a drop of dish soap. With its pad fitted, lower the tool straight into the well and rotate it back and forth, then drain, rinse and dry.

Treat cleaning as part of the event plan: allow time to empty, cool, clean and dry the equipment. Do not leave the next user to discover a blocked tap or dried grounds.

Coffee Urn Troubleshooting

Coffee urn problems: checks before changing the recipe
Coffee urn problems: checks before changing the recipe
ProblemUseful first check
Too little coffee to serveCompare actual poured volume with the event plan, not just the urn's cup number.
Grounds in the cupCheck grind, basket fit, filter compatibility and grounds spilled into the stem.
Weak coffee or interrupted brewingCheck dose, assembly and the manual's fault guidance before adding more coffee.
Later pours taste unpleasantCompare with the fresh batch; review holding duration and residue.

Family gatherings and shared self-service tables are typical uses. For a staffed event or workplace, select equipment rated for that setting.

Easy Home Setup

Choose a stable surface with space for a cup under the tap and cords clear of the serving path. Put milk and sweeteners beside the urn for individual additions; do not add them to a brewing tank unless its instructions permit that use.

Caffeine, Calories and Serving Size

For a 240 g (8.5 oz) serving of generic brewed black coffee, reference estimates are 96 mg caffeine, 2 kcal and 0 g sugar. A larger pour or added milk and sugar changes that serving.

Serving assumptions and sources

The USDA SR28 brewed-coffee table, NDB 14209 (PDF pages 546–548), lists 40 mg caffeine, 1 kcal and 0 g total sugar per 100 g. Multiplying by 2.4 gives 96 mg caffeine and 2.4 kcal, rounded to 2 kcal. This example uses beverage mass, not the urn's water-input marks.

Common Questions Before You Brew

How Much Coffee Goes in a 30-Cup Urn?

For a named example, West Bend’s 58030 manual specifies 1¾ standard measuring cups of ground coffee with water at the 30-cup mark. This is the maker’s volume measure, not a verified gram conversion. For another urn, use its own chart; its cup marks and basket dose may differ.

Can You Make a Small Amount of Coffee in a Large Urn?

Yes, within its minimum fill: the Hamilton Beach 40515R starts at 15 marked cups, while the West Bend 33600 starts at 40. Choose smaller equipment if your desired batch falls below your model’s minimum.

Can You Use a Coffee Urn for Hot Water?

Yes, for the named Hamilton Beach model: remove the basket and stem, fill within its marked range, lock the lid and heat until the ready light glows, following its hot-water instructions. Other models use different assemblies. For one drink, instant coffee may only need a suitable kettle rather than an urn batch.
