Brew Method
Siphon Coffee: How to Brew, Ratios, Filters and Drawdown
A siphon steeps coffee in its upper bowl, then filters it into the lower globe as heating stops and pressure falls. Learn the sequence before adjusting grind or time.

Brew Snapshot
- Method
- Immersion, then filtered drawdown
- HARIO dose
- 10 g coffee per 120 ml (4.1 US fl oz) water
- Grind
- Medium, not powder-fine
- Timed stage
- 40–60 seconds in upper bowl
- Example serving
- 240 g (8.5 oz) plain brewed coffee
- Generic reference
- Estimated 96 mg caffeine · 2 kcal · 0 g sugar
More brewing details
- Method
- Siphon Coffee
- Brew time
- HARIO example: 40–60 seconds in upper bowl, plus heating and drawdown
- Grind size
- Medium in HARIO's manual
- Equipment
- Complete siphon brewer and compatible filter, Manufacturer-approved heat source, Medium-ground coffee, Scale and water measure, Timer and suitable stirrer, Heat protection and stable heat-safe surface
- Difficulty
- Advanced
- Body
- Depends on coffee and filter
- Clarity
- Depends on filter
Key Takeaways
- Choose a siphon if the visible brewing ritual appeals to you as much as the finished coffee; assembly and filter care are part of that choice.
- Cloth offers a smooth cup with body, while compatible paper and metal options let you explore a different texture.
- Judge the cooled cup before changing the heat: more dramatic bubbling is not a route to more flavor.
On This Page12 Sections

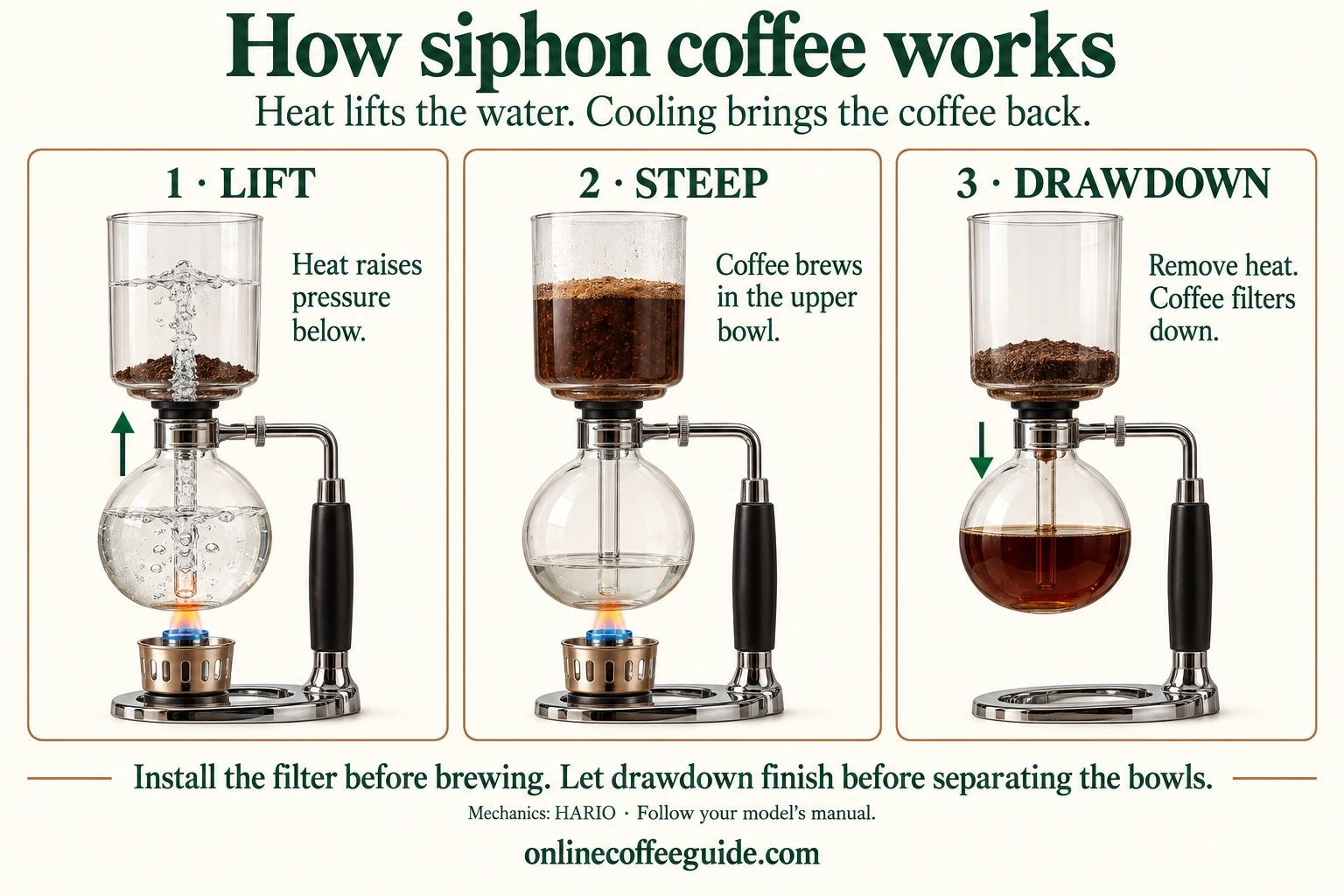

How Siphon Coffee Moves Between the Bowls
Heat increases pressure in the lower globe and pushes water up the connecting tube. Coffee and water mix in the upper bowl, while a small amount of water remains below. Once heating stops, cooling and condensation lower the pressure in the globe; atmospheric pressure and gravity help the coffee return through the filter.

This is why a siphon is also called a vacuum coffee maker. It does not pull espresso through a packed coffee bed. In a moka pot, pressure drives water through the grounds into a separate upper collector; the finished coffee does not return to the base.
A balance siphon puts the chambers side by side. In Liesche’s 1866 design, water leaves a heated vessel for the coffee chamber; as the water vessel gets lighter, a counterweight lifts it and releases a lamp snuffer. Cooling then draws filtered coffee back to the vessel with the serving tap. A vertical HARIO instead keeps the lower globe and upper bowl fixed in a stand, with the brewer stopping the heat.
Siphon Coffee Ratio, Grind and Capacity
HARIO's published starting point is 10 g coffee with 120 ml (4.1 US fl oz) water. Its manual describes about 100 ml (3.4 US fl oz) finished coffee from those inputs. Water input and collected coffee are different quantities.
The Technica product listing identifies these sizes. A “cup” here is a small manufacturer unit, not a full-size mug.
Swipe to see all columnsScroll to see all columns
| Technica size | Listed capacity / water amount | Coffee at 10 g per 120 ml (4.1 US fl oz) |
|---|---|---|
| 2-cup | 240 ml (8.1 US fl oz) | 20 g |
| 3-cup | 360 ml (12.2 US fl oz) | 30 g |
| 5-cup | 600 ml (20.3 US fl oz) | 50 g |
The dose column is our arithmetic using the maker's starting point. Follow the markings and manual supplied with your specific model; do not put a five-cup batch in a smaller brewer.
Start with the manual's medium grind. Compare your grounds with a grind-size reference. Very fine particles can slow filtration. Record dose, water, grind, upper-bowl time and filter type so a change is meaningful.
How to Brew with a Siphon
This sequence follows HARIO Europe's coffee-first method, with heat-source handling checked against its Technica manual.
Recipe
3-Cup HARIO Technica Siphon Coffee
- Makes:
- 1 batch, approximately 300 ml (10.1 US fl oz); measure the coffee collected
- Time:
- 40–60 seconds in the upper bowl, plus heating and drawdown
Ingredients
- 30 g medium-ground coffee
- 360 ml (12.2 US fl oz) brewing water, plus separate cloth-preparation water
Equipment
- 3-cup HARIO Technica
- Matching cloth filter and holder
- Stand
- Upper-bowl holder
- Approved heat source
- Kettle
- Scale
- Water measure
- Timer
- Suitable stirrer
- Heat protection
- Heatproof bowl for preparing a new cloth filter
Method
- Fit the filter. Prepare a new HARIO cloth filter in boiling water before use. Seat the filter centrally in the upper bowl, draw its chain down the tube and attach the hook as the Technica manual instructs.
- Add the coffee above. Put 30 g medium-ground coffee in the upper bowl before heating.
- Add water below. Pour 360 ml (12.2 US fl oz) water into the lower globe, secure it to the stand and dry the outside completely before heating. Preheated water reduces warm-up time.
- Heat and seat the upper bowl. Follow the manual's initial angled placement. When the water boils, gently bring the upper bowl upright to seal; never force the glass.
- Stir and time. When water has risen, gently wet and mix the grounds with a suitable stirrer. Brew in the upper bowl for 40–60 seconds. Keep heat controlled and centered beneath the lower globe.
- Stop heating safely. Follow the heat source's instructions. For the supplied alcohol lamp, extinguish with its cover and confirm the flame is out before moving the lamp. Do not move or refill a burning lamp.
- Wait for drawdown. Let the coffee return through the filter without forcing the upper bowl off. After drawdown finishes, hold the stand, gently loosen the upper bowl and place it in its holder. Use heat protection as needed.
- Serve and clean. Pour from the lower bowl. Let hot glass cool before washing; do not put it on a wet surface or add cold water to hot glass.
Recipe notes
HARIO Europe coffee-first method, scaled to the 3-cup example. Water input is not finished yield.
Check the glass for damage and use a stable heat-safe surface. Never move or refill a burning alcohol lamp; do not heat the lower globe dry.
I enjoy following the siphon's lift, steep and drawdown as separate stages. I note the steep once the coffee and water are together; a longer warm-up isn't the same as giving the grounds more brewing time.
Measure the collected coffee before dividing it into servings.
Heat and Timing: What You Are Controlling
Siphon brewing uses sustained heat rather than a cooling kettle pour. The brewer, heat source, room and altitude affect upper-bowl temperature. Maintain the heat needed for the selected method, rather than chasing dramatic bubbling.
Choose the heat source for your exact siphon. HARIO’s Technica manual allows an alcohol burner, a siphon gas burner or gas table, or a halogen heater. The supplied alcohol lamp takes fuel-type alcohol, not gel fuel. Extinguish it with its cover and confirm the flame is out before moving it; never refill a lit lamp.
For a butane burner, check its fit and clearance under your stand as well as the fuel instructions. The RK4203 manual specifies refined butane and a knob that adjusts the flame and closes fully to shut it off. That is a different fuel system from the supplied alcohol lamp.
For electric heat, HARIO’s Dial Beam Heater is a separate halogen heater for HARIO siphons with adjustable heat. Match the unit’s electrical rating to your supply. HARIO’s Japan-market ECA-3-B is instead a complete electric siphon with its own adjustable heater and a listed practical capacity of 360 ml (12.2 US fl oz); its glass and heater separate for cleaning.
If changing the coffee dose or grind, keep the starting water amount and timing consistent for the comparison. Taste the result after it cools enough to assess. For weak coffee, check the recorded dose and grind before increasing heat.
Siphon Filters and Cleaning
Use a filter and holder compatible with your siphon. HARIO's Technica includes a cloth filter; its product page also lists compatible paper and stainless-steel options. Changing only the filter can change sediment and texture, so record that choice with the recipe.
| Filter | What to check |
|---|---|
| Cloth | Fit it evenly and follow the maker's first-use, washing and storage directions. Oil buildup can affect aroma and flow. |
| Paper | Use the matching holder and paper size; do not improvise a loose paper disk over the opening. |
| Stainless steel | Check model compatibility, clean the mesh and expect a different particle-retention profile. |
For HARIO's cloth filter, the manual says to immerse it in boiling water before first use, wash after brewing, then store it in a container of water in the refrigerator, changing that water regularly. Follow that specific care routine instead of leaving a used wet filter exposed on the counter. Replace worn cloth.
Wash the glass with a soft sponge and neutral detergent, avoiding abrasive cleaners and hard impacts. The manual warns against forceful twisting inside the glass. For other cloth brewing methods, see cloth-filter coffee and nel drip; their equipment and recipes are separate.
Siphon Troubleshooting: Lift and Drawdown
| Problem | Useful response |
|---|---|
| Water does not rise | Stop heating if the process is not behaving normally. Once cool, check assembly, gasket fit and the approved heat setup against the manual. |
| A little water remains below | This is expected during brewing. Do not keep heating to empty the globe. |
| Drawdown slows or stalls | Confirm heating has stopped. After cooling, inspect filter seating and cleanliness; review whether the grind is too fine. |
| Grounds reach the lower bowl | Inspect the filter position, attachment and condition before the next brew. |
| Harsh or unusually weak cup | Check the recorded dose, grind and timed stage. Change one variable instead of increasing flame, dose and time together. |
| Stale smell | Check coffee freshness and filter care before assuming the siphon needs a longer brew. |
If the glass is cracked or chipped, stop using it. If a hot brewer behaves unexpectedly, do not force apart its chambers or plug its opening. Let it cool and consult the model's instructions.
What Does Siphon Coffee Taste Like?
With its cloth filter, siphon coffee can feel smooth and rounded while leaving less fine sediment than a typical metal-screen French press. It can carry a full aroma and satisfying sweetness without feeling muddy. A bright coffee will still have acidity; a more developed roast may feel softer and more roasty.
Filter choice is a useful distinction. Compatible paper usually gives a lighter, clearer finish; metal allows more oils and fine particles through. If the aroma seems stale, check filter care before extending the steep. Compare coffees once they have cooled to a similar drinking temperature so heat does not hide the difference.
I prefer the cloth-filtered siphon cup because it combines a smooth feel with enough body to stay satisfying. The visible lift and drawdown add to the occasion, provided you have time for the setup and cleanup; pour-over offers a simpler gravity-driven alternative.
How the Siphon Became Part of Hario’s Story
Vacuum brewing was established before Hario began making coffee equipment. For a company already working with heatproof laboratory glass, the two-bowl brewer was a natural first household product. Hario’s account describes a 1946 prototype based on the American Cory vacuum pot.
Its HIROMU siphon reached commercial production in 1948, beginning the company’s coffee range. The method has kept a place in Japanese coffee culture, where its glass chambers and visible brewing stages are part of the experience. The Technica used here belongs to that longer line of Hario siphons.
Caffeine, Calories and Sugar
Estimated nutrition for a 240 g (8.5 oz) generic brewed-coffee serving: 96 mg caffeine, 2 kcal and 0 g sugar.
Coffee type, dose, extraction and the amount poured affect caffeine. Milk and sweeteners add their own nutrition.
Serving calculation and source limits
USDA Standard Reference record 14209 lists plain brewed coffee prepared with tap water at 40 mg caffeine, 1 kcal and 0 g total sugar per 100 g. For 240 g, the calculation gives 96 mg caffeine, 2.4 kcal and 0 g sugar, with energy rounded to 2 kcal. The serving is weighed finished coffee, not 240 ml (8.1 US fl oz) of input water. It is separate from HARIO's 30 g / 360 ml (12.2 US fl oz) method example, whose nutrition has not been measured. The reference excludes milk, sugar and other additions.
Common Questions Before You Brew
Is Siphon Coffee Espresso?
No. Both can involve pressure, but a siphon brews by immersion above and then filters downward. It does not reproduce an espresso machine's extraction through a compacted puck.
What Grind Size Should I Use for Siphon Coffee?
HARIO specifies medium grounds for its siphon method. Start there, then assess extraction and drawdown. If drawdown stalls, check for overly fine grounds.
Do I Have to Use a Cloth Filter for Siphon Coffee?
No, if your model supports another filter and matching holder. HARIO lists paper and stainless-steel alternatives for the Technica. Check compatibility before swapping parts.
When Do I Start the Siphon Coffee Brew Timer?
Start HARIO's 40–60-second upper-bowl timer after the water has risen and you have mixed the coffee. Heating the water beforehand is a separate stage.
Why Does Siphon Coffee Stay in the Upper Bowl?
Stop heating safely and let the lower globe cool so drawdown can begin. If coffee still stays above, let the brewer cool before checking for a badly seated or clogged filter. Do not force apart a hot stalled brewer.
