Brew Method
No-Bypass Brewing: Water Paths, Brewers and Better Adjustments
No-bypass describes the intended route of water through coffee. The useful question is where your brewer lets water go, and how its recipe controls that path.
On This Page11 Sections
Key Takeaways
- 1No-bypass designs aim to stop water escaping around the coffee bed. Correct paper fit and assembly still matter.
- 2A valve controls when water leaves; it does not define the filter seal. A brewer can combine a steep with no-bypass drainage.
- 3Use a recipe for your actual device. Less bypass does not guarantee better flavor, a higher caffeine dose or one universal grind setting.
Highlights
- Core idea
- Limit routes around the coffee bed
- Valve
- Optional; controls holding and release
- Ratio and time
- Follow the device's recipe
- Paper fit
- Correct size and an intact edge
- Caffeine reference
- 96 mg per 240 g (8.5 oz) plain brewed coffee
- Calories / sugar
- About 2 kcal / 0 g, same reference
What Is No-Bypass Brewing?
No-bypass brewing uses a design intended to direct brewing water through the coffee bed instead of allowing it to escape around the bed. A familiar example has solid sidewalls and a paper filter across the bottom.
“Zero bypass” is another common label. Check paper fit and assembly before judging the flow. A torn filter, poor edge fit or channel within the grounds can still change the result.
This is a design concept within coffee preparation. For complete instructions, choose the relevant Pulsar, Hoop or other device guide below.

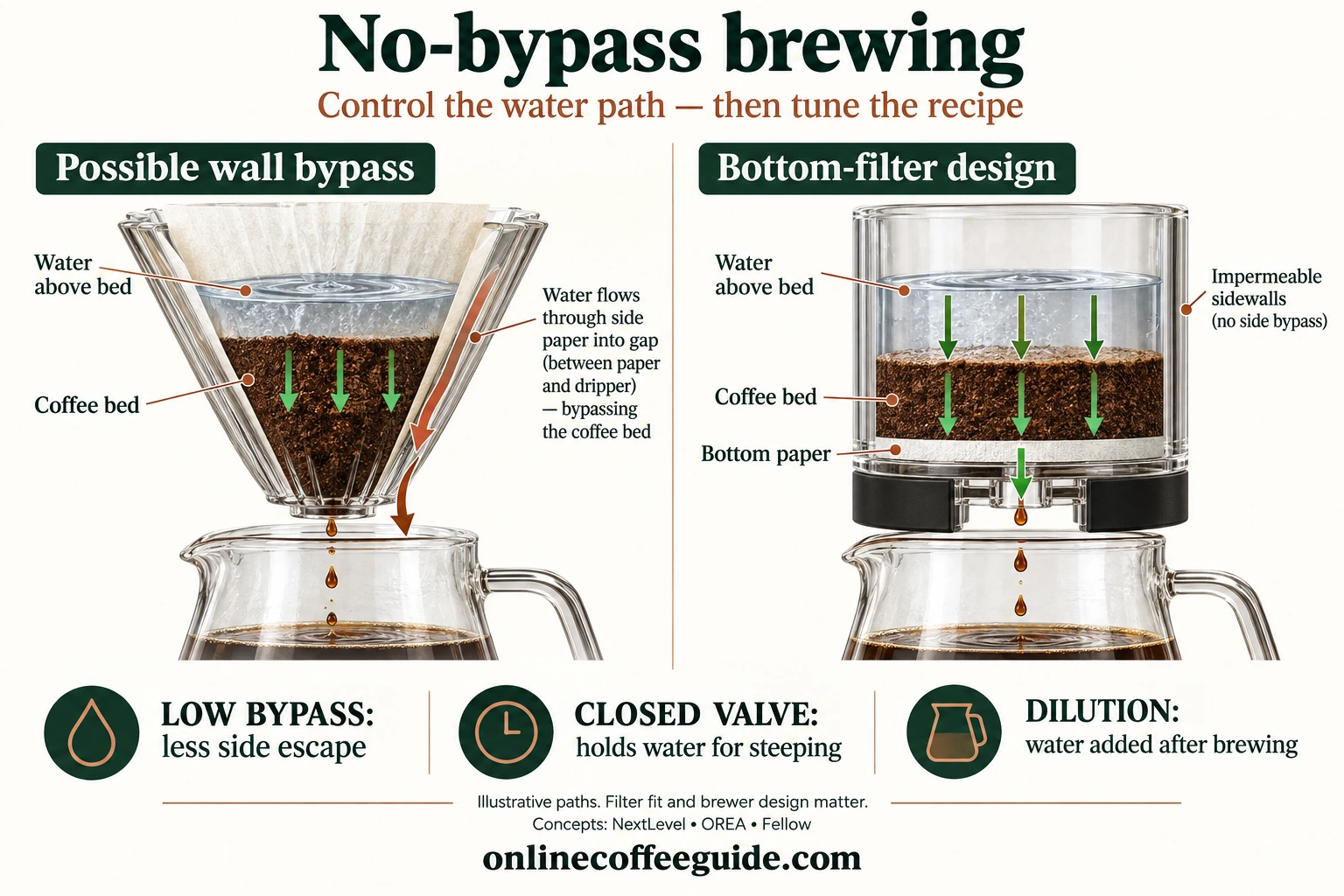

What Bypass Actually Means
The word is used for different situations. Keeping them separate makes recipes easier to read:
Swipe to see all columnsScroll to see all columns
| Term | What happens | What you control |
|---|---|---|
| Wall or filter bypass | Some water crosses exposed side paper and travels around the main coffee bed. | Geometry, filter fit, water level and pouring. |
| Low-bypass arrangement | The setup reduces available side routes, without necessarily eliminating them. | The paper and its contact with the wall. |
| Deliberate bypass or dilution | Measured water goes into brewed coffee instead of through the grounds. | Water added to change the finished strength. |
Fellow's explanation of bypass brewing uses the deliberate-dilution meaning. A no-bypass brewer can still make a concentrate that you dilute afterward; the two ideas are compatible.
Does Less Bypass Mean More Extraction?
It can increase contact between brewing water and coffee, but it does not guarantee a higher or better extraction. Grind, agitation, temperature, bed depth and flow through the grounds remain important.
Pulsar co-designer Jonathan Gagné explains that a bottom-only filter has less paper area available than a filter extending up the sides. Aggressive agitation can therefore become a clogging problem. His design discussion emphasizes controlling flow and agitation.
Strength describes how concentrated the drink is. Extraction describes how much soluble material has left the grounds. Strong taste alone does not establish a high extraction yield, and a watery cup is not automatically underextracted.
No-Bypass Brewer Family
Compare the mechanism rather than ranking brewers by promised flavor:
Swipe to see all columnsScroll to see all columns
| Brewer or arrangement | Water handling | Important distinction |
|---|---|---|
| NextLevel Pulsar | Bottom filter, dispersion cap and adjustable outlet valve. | Permits both immersion and percolation stages. |
| Tricolate | Straight-wall, bottom-filter gravity-brewer example. | A Pulsar valve sequence is not a Tricolate instruction. |
| Ceado Hoop | An outer reservoir feeds the central coffee chamber radially, with secured paper beneath. | It does not require a conventional pour-over pattern over the grounds. |
| Weber BIRD | Steeps first, then lifts a filtration pod mechanically. | It is not a gravity-only dripper or the same workflow as Hoop. |
| Orea with fitted paper | Paper fitted against the wall reduces space for side flow. | Different papers and bottoms do not produce one identical zero-bypass setup. |
For individual routines, see Tricolate, Ceado Hoop, Weber BIRD and Orea. The Pulsar maker explicitly describes combinations of immersion and percolation. Orea separately markets Z1 for zero bypass.
A Clever Dripper or Hario Switch holds a steep behind a valve, but a valve alone does not establish a bottom-only sealed filter geometry. AeroPress adds manual pressure to its workflow. “Immersion,” “pressure” and “bypass” describe different aspects of a brew.
How to Start No-Bypass Brewing
When moving to a no-bypass brewer, I start with a recipe written for that design. The same grind and ratio can drain differently when the water has to cross the coffee bed, so my usual cone recipe isn't a neutral starting point.
These published examples use different ratios and timing:
Swipe to see all columnsScroll to see all columns
| Source | Coffee and water | How to use the example |
|---|---|---|
| NextLevel's standard Pulsar listing | 20 g / 340 g (11.5 US fl oz); calculated 1:17 | Choose its linked recipe for grind and valve timing. Do not transfer this batch to Pulsar Mini. |
| Ceado's Hoop instructions | 15 g / 250 g (8.5 US fl oz); calculated 1:16.7 | Water in the outer ring; 4–5 minute reference; no stirring or slow pouring required. |
Sources: NextLevel's product guidance and Ceado's illustrated instructions. Keep each example with its linked instructions.
Ceado's instructions call for a grind similar to one used for a V60; our Ceado Hoop guide treats that as a medium-fine starting point.
Record dry coffee, water input, collected coffee and total time separately. Grounds retain water, so 340 g (11.5 US fl oz) poured does not mean 340 g (12 oz) served. Use the grind-size guide for texture comparisons, then establish your brewer's baseline.
Before the First Brew
- Assemble the intended filter and seals. Check that paper covers its outlet and that its edge has not folded away.
- Use a stable vessel. A tall handle or narrow mug opening must not tilt the brewer.
- Keep the recipe's flow control. Use its dispersion cap, outer reservoir or valve sequence as specified.
- Log one result before changing variables. Change grind, agitation or ratio individually, with taste alongside the timer.
Do not force a blocked brewer, pressurize a gravity device or exceed its capacity to accelerate drainage.
What Changes in the Cup?
Reduced side flow offers a way to control extraction. Filtration also affects fine material reaching the cup, separately from whether water bypasses the bed.
This approach may interest you if you enjoy adjusting flow and comparing brews. If you already get consistent coffee from a pour-over, the term “zero bypass” alone is not a reason to replace your brewer.
Keep beans, water and serving temperature similar in a home comparison. Record what changed; do not label a longer drawdown, darker color or stronger taste a measured extraction improvement.
No-Bypass Brewing Troubleshooting
Swipe to see all columnsScroll to see all columns
| Symptom | Check first | Next adjustment |
|---|---|---|
| Very slow drainage | Closed valve, blocked outlet or folded paper. | If assembly is correct, reduce excess agitation or try slightly coarser grounds. |
| Grounds in the cup | Paper tears, wrong diameter or an unsealed edge. | Replace and refit the filter before changing the recipe. |
| Harsh or drying taste | Aggressive stirring, prolonged steeping or a recipe mismatched to the roast. | Change one parameter after checking assembly and agitation. |
| Too concentrated but otherwise pleasant | Served volume and any missing dilution step. | Add measured water to taste and record it separately. |
No-Bypass Coffee Serving, Caffeine, Calories and Sugar
These brewers can supply plain filter coffee or a milk-added drink. They do not all produce espresso, and a concentrate is not automatically an Americano.
A generic 240 g (8.5 oz) serving of plain brewed coffee provides about 96 mg caffeine, 2 kcal and 0 g sugar. Caffeine depends on the coffee and serving. Adding water lowers caffeine concentration but does not remove caffeine already in the coffee.
Serving, calculation and source
USDA Standard Reference record 14209 reports 40 mg caffeine, 1 kcal and 0 g total sugars per 100 g of brewed coffee prepared with tap water. A 240 g finished serving gives 96 mg caffeine and 2.4 kcal, rounded to 2 kcal. This is a generic reference, not a measured Pulsar, Hoop, BIRD or Tricolate result and not an estimate obtained from input water. Coffee dose, beans and extraction vary. Count milk or sweetener separately.
Common Questions Before You Brew
Is No-Bypass the Same as Immersion?
No. Immersion describes coffee steeping in water. No-bypass describes the intended route around or through the grounds. A valve-equipped brewer can hold an immersion stage and then drain through the bed.
Is All Flat-Bottom Brewing No-Bypass?
No. Bed shape alone does not determine the water route. Side paper, gaps, seals and the outlet arrangement also matter.
Does No-Bypass Require a Finer Grind?
No. For a named starting point, the Ceado Hoop method uses a V60-like, medium-fine grind; the Pulsar method here starts medium-coarse. Use the recipe for your device, then adjust from taste and drainage.
Can I Add Bypass Water Afterward?
Yes. Measure it separately from brewing water. This adjusts final concentration without requiring the extra water to pass through the coffee.
