Orea Brewer Guide: V3, V4, Filters and a Starting Recipe
An Orea recipe starts with three choices: the brewer, its bottom and the paper. Keep that setup fixed while you learn the brew; changing all three makes a useful recipe difficult to repeat.
On This Page10 Sections
Key Takeaways
- 1Identify the exact setup: V3 size or V4 Narrow/Wide, bottom and paper. An Orea recipe without those details is incomplete.
- 2The Negotiator shapes a filter to fit the brewer. It is useful for fitted flat paper, not compulsory for every wave-paper brew.
- 3Start with one documented configuration. Judge changes by the cup and drainage together, rather than chasing a universal finish time.
Highlights
- Method
- Manual filter coffee
- Example setup
- V4 Narrow + FAST + fitted flat paper
- Coffee / water
- 16 g / 260 g (8.8 US fl oz) input
- Example ratio
- 1:16.25 by weight
- Caffeine reference
- 96 mg per 240 g (8.5 oz) plain brewed coffee
- Calories / sugar
- About 2 kcal / 0 g, same reference
What Is an Orea Brewer?
Orea makes several manual coffee brewers, including the V3 and modular V4. This guide concentrates on those familiar models and their filter choices. They make filter coffee, without the pressure of an espresso machine.
In a smooth-wall dripper, the fit between paper and wall changes the routes available to water. A fitted paper can reduce side escape compared with an open pleated arrangement. That is a useful brewing variable, but it does not establish that every Orea configuration is a perfectly sealed no-bypass brewer.
V3, V4, and the Modular System
The Orea version, bottom and filter fit all go beside my dose and water notes. When I return to a saved recipe, I want to know what I actually assembled, not just how much coffee I weighed.
Check the model before buying paper or borrowing a recipe:
Swipe to see all columnsScroll to see all columns
| Model | Identify first | Practical consequence |
|---|---|---|
| Original V3 Small | Small / 155; maker suggests 10–18 g coffee | Its original specification lists Kalita 155 paper. |
| Original V3 Large | Large / 185; maker lists 10–36 g | Its original specification lists Kalita 185 paper. Larger capacity does not require a larger dose. |
| V4 | Narrow or Wide, then FAST, CLASSIC, OPEN or APEX bottom | Keep the selected bottom and paper with the recipe. |
| Other Orea lines | O1, O2, Z1, Glass and Big Boy have their own guidance | Use the instructions for the named product line. |
The V3 figures come from the original V3 specification. Orea's broader filter page groups V3/V3MK2 compatibility; use the size-specific specification for an original Small or Large. Consult the current guide index for the other product lines.
The Negotiator and Filter Choice
The Negotiator is a shaping tool, not a filter or a valve. It forms suitable paper against the brewer's interior. Remove the tool before adding coffee.
Orea provides different tool files for V4 Narrow and Wide, plus APEX tips. The original V3 tool is also listed for flat-bottom V4 Narrow configurations. Do not assume it fits V4 Wide.
| Paper setup | What to check |
|---|---|
| Pleated wave paper | Use the specified size and preserve a stable flat base. It does not reproduce the fit of negotiated flat paper. |
| Fitted flat paper | Use compatible paper and the appropriate former; inspect for folds, tears and a lifted edge before brewing. |
| V4 Narrow with APEX | Orea specifies shaped paper with the appropriate APEX tool; it advises against wave paper here. |
| V4 Wide with APEX | Orea permits appropriately folded conical paper. That does not make conical paper a drop-in replacement in every configuration. |
Paper permeability and fit are separate variables. Replacing one paper with another while changing the grind prevents you from knowing which change caused the result.

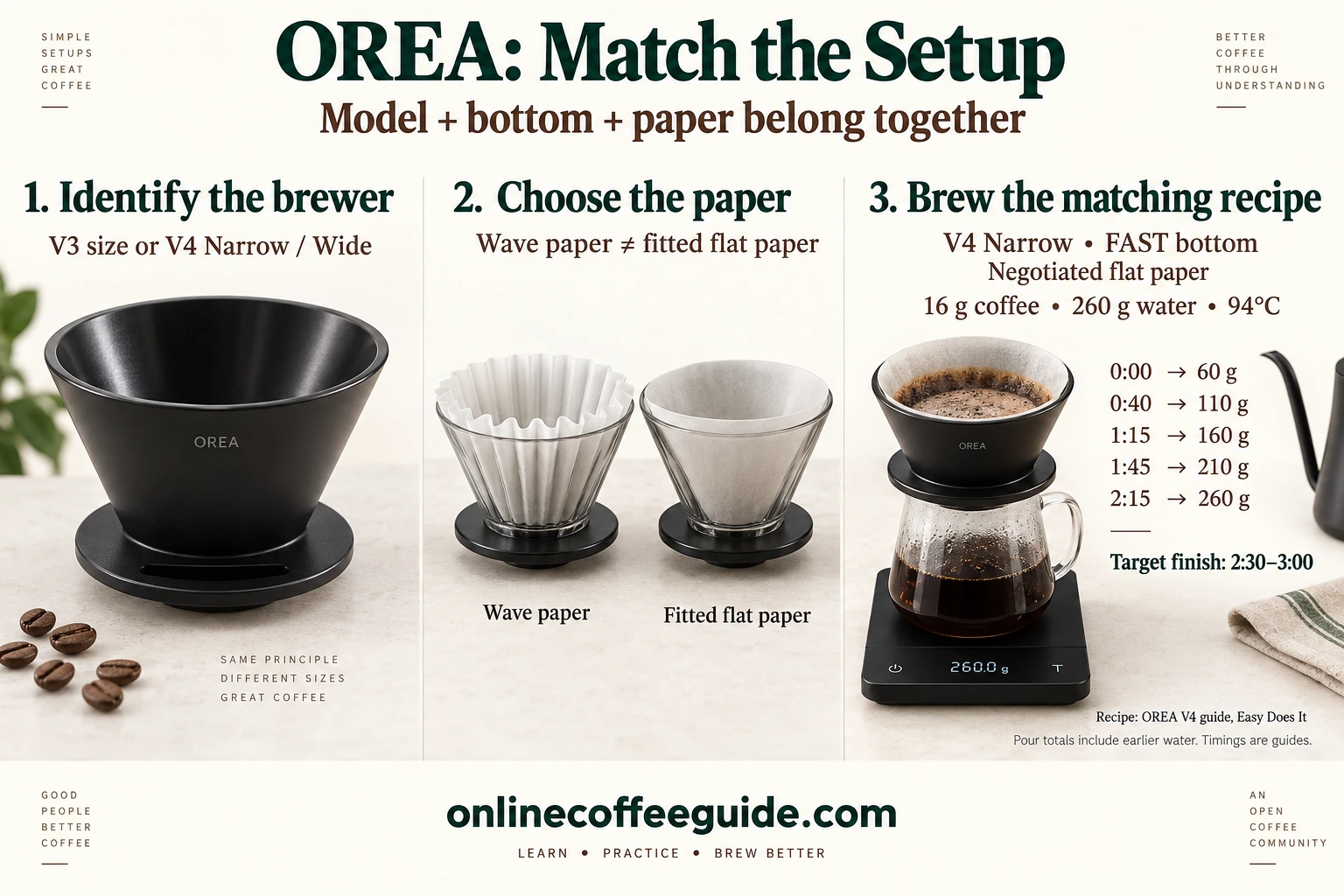

Orea V4 Narrow Starting Recipe
Use Orea's “Easy Does It” example for V4 Narrow, FAST bottom and negotiated flat paper. Start with 16 g coffee, 260 g (8.8 US fl oz) water input, 94°C (201°F) and a medium/coarse grind. Orea's suggested finish is 2:30–3:00, measured from the first pour.
Recipe
Orea V4 Narrow: Easy Does It
- Makes:
- 1 cup; collected coffee is less than 260 g (9.2 oz)
- Time:
- About 2:30–3:00 from the first pour, plus setup
Ingredients
- 16 g medium-coarse ground coffee
- 260 g (8.8 US fl oz) brewing water at 94°C (201°F), plus separate filter-rinse water
Equipment
- Orea V4 Narrow with FAST bottom, matching flat paper and compatible Negotiator
- Stable heatproof server, grinder, scale, kettle and timer
Method
- Fit the FAST bottom securely. Shape the matching flat paper with the compatible Negotiator, remove the tool, rinse and discard rinse water. Place the brewer on a stable server, add 16 g coffee, level gently and tare the scale.
- Start the timer and spiral-pour 60 g (2 US fl oz) water at 94°C (201°F). The scale total is 60 g (2 US fl oz).
- At 0:40, add 50 g (1.7 US fl oz) in spirals to reach 110 g (3.7 US fl oz) cumulative.
- At 1:15, add 50 g (1.7 US fl oz) to reach 160 g (5.4 US fl oz) cumulative.
- At 1:45, add 50 g (1.7 US fl oz) to reach 210 g (7.1 US fl oz) cumulative.
- At 2:15, add the last 50 g (1.7 US fl oz) to reach 260 g (8.8 US fl oz) cumulative. Treat these times as guides; begin each pulse when water approaches the bed.
- Let the coffee drain, aiming for 2:30–3:00 from the first pour. Remove the brewer carefully and stir the server.
Recipe notes
Orea’s named V4 Narrow/FAST/negotiated-flat-paper method. Other papers or bottoms need separate adjustments.
These are the source’s gram-based scale targets; 260 g (8.8 US fl oz) is input, not finished yield.
The manufacturer's guide lists water in milliliters in its ingredient line but gives gram targets for each pour. Here we follow those scale targets, yielding a calculated input ratio of 260 ÷ 16 = 16.25, or 1:16.25. Collected coffee will weigh less than the water input.
The Taste, and Who It Suits
Orea suits a reader who wants to compare filter fit and brewer configurations within a repeatable routine. It is less convenient if the main goal is to avoid extra parts and decisions.
Coffee, water, filter and preparation shape the cup. For a useful home comparison, keep the coffee, dose and water fixed, change one setup variable, then record taste and drawdown.
For another flat-bed approach, compare the Kalita Wave guide; for a conical reference, see Hario V60. Those pages explain their own equipment and recipes.
Orea Brewer Troubleshooting
| Problem | First checks |
|---|---|
| The brew stalls | Check paper fit and outlet assembly, then excessive fines or agitation. Try a small grind change only after confirming the setup. |
| Very fast, weak brew | Confirm the dose, scale totals, paper and bottom match the chosen method. Inspect for a misplaced filter before grinding finer. |
| Drying or harsh finish | Reduce unnecessary stirring or aggressive pouring; compare a modest grind adjustment. Time alone does not diagnose extraction. |
| Results change after a paper swap | Return to the known paper or establish a fresh baseline. |
Orea Coffee Caffeine, Calories and Sugar
For context, 240 g (8.5 oz) of plain brewed coffee has a generic reference estimate of 96 mg caffeine, about 2 kcal and 0 g sugar. This is not a measurement of the 16 g Orea recipe.
Serving, calculation and source
USDA Standard Reference record 14209 lists brewed coffee prepared with tap water at 40 mg caffeine, 1 kcal and 0 g total sugars per 100 g. Multiplying by 2.4 gives 96 mg caffeine and 2.4 kcal for a 240 g serving; energy is rounded here. This serving is weighed brewed coffee, not 240 g of brewing water or a predicted Orea yield. Bean composition, dose and extraction vary. Milk, sugar and syrup add their own nutrition.
Common Questions Before You Brew
Do I Need a Negotiator?
Not for every setup. A compatible wave paper can be used without flattening all its pleats. The fitted flat-paper recipe above does require the appropriate shaping tool.
Can I Use Kalita Filters?
Orea lists Kalita compatibility, but match the size and model. Original V3 Small specifies 155 and Large specifies 185. For V4, check the selected bottom and recipe; do not use wave paper with Narrow APEX against the maker's instructions.
Is Orea V4 a No-Bypass Brewer?
A fitted filter can reduce bypass, but V4 supports several papers and bottoms. Describe the actual setup rather than assigning one absolute label to every V4 brew. Orea separately markets Z1 as its zero-bypass design.
Is V4 Better Than V3?
Choose V4 if you want to experiment with interchangeable bottoms and filter configurations. Keep V3 if its capacity and paper routine already suit your brewing; more options alone do not establish a better cup.
