Espresso Pressure Too Low or Too High? Causes and Fixes
Low, high or dropping espresso pressure? Read the gauge alongside water flow, check the likely cause and choose a useful next test before changing settings.
Quick Answer
Low espresso pressure with fast, thin coffee calls for a different check from low pressure with almost no water. High pressure with only drips suggests restricted flow. Start with what reaches the cup, when the reading changed and which gauge you are watching; then choose the matching check below.
On This Page7 Sections
First, Check Which Pressure the Gauge Shows
Find the brew-pressure gauge in your manual. A steam-boiler gauge measures a different part of the machine, so its reading is not an espresso extraction target. Some dials use an espresso zone rather than numbered bars.
Around 9 bar is a familiar brewing setting, but it is not a universal pass mark: some machines and recipes deliberately use lower pressure. A pump advertised as 15 or 20 bar is not a target for the coffee. For example, Breville describes the Barista Express as using a 15-bar pump for 9-bar extraction.
Compare the gauge at the same brewing stage each time. Pre-infusion may start at low pressure, and a programmed profile can taper later. Use the later extraction stage and your machine’s normal pattern for comparison.

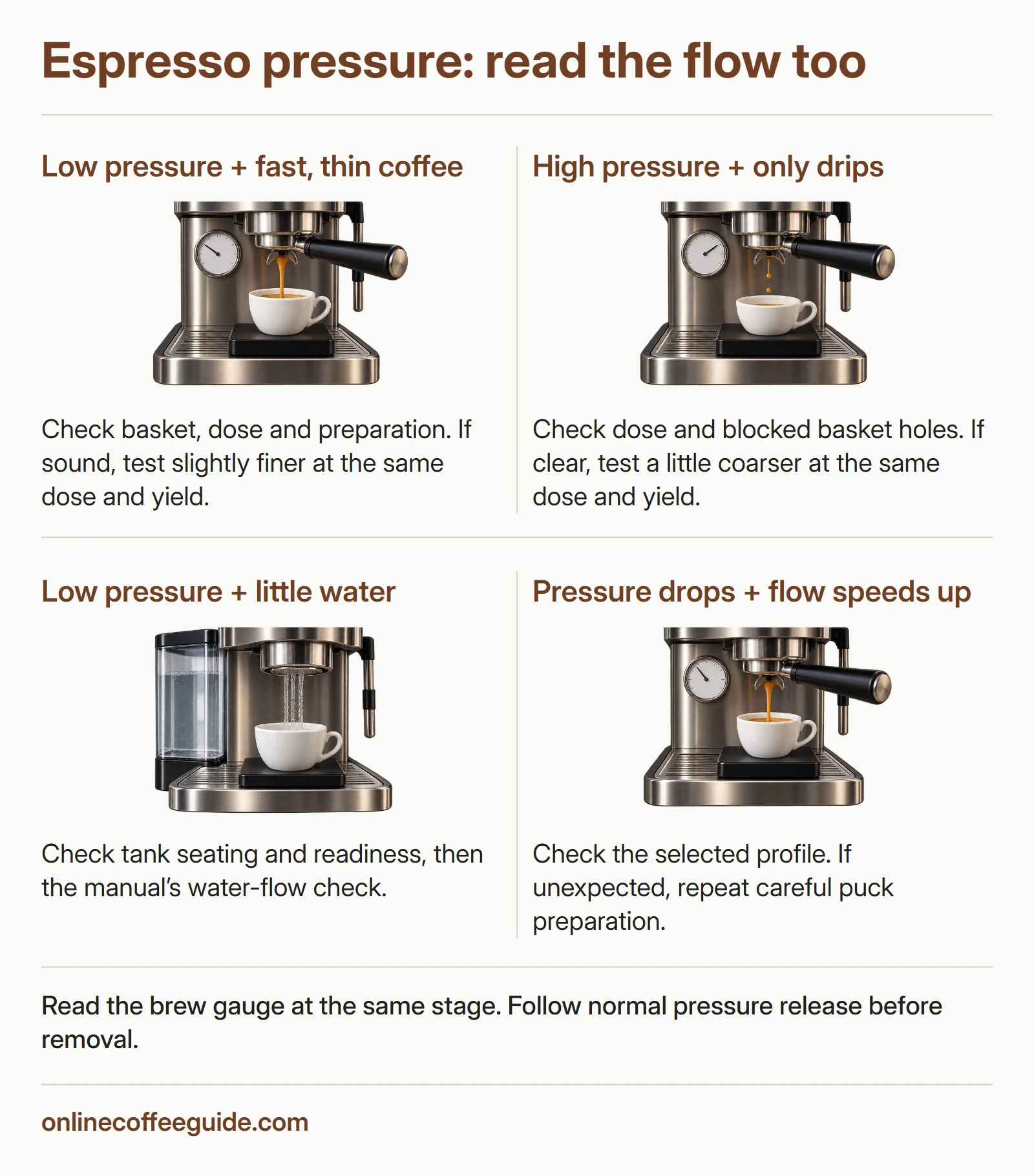

Match the Pressure Reading to the Water Flow
Before removing the portafilter, stop brewing and follow the manual’s pressure-release procedure; do not loosen it while pressurized. Let removable parts cool before cleaning. If a stalled shot will not release normally, stop using the machine and contact support rather than forcing the handle.
Swipe to see all columnsScroll to see all columns
| What you notice | First check | Next useful action |
|---|---|---|
| Low pressure, fast and thin espresso | Correct basket, intended dose and an even, level puck | If preparation is sound, test a slightly finer grind at the same dose and beverage weight |
| High pressure, very slow flow or only drips | Excess dose, blocked basket holes or a recent finer grind | Correct a visible dose or blockage problem first; otherwise test a small coarser adjustment |
| Low or no pressure, little or no water | Tank level and seating; whether the machine is ready | Follow the manual’s short group-flush check; persistent weak or absent flow needs model-specific support |
| Pressure drops while flow suddenly speeds up | Whether the selected profile calls for that drop | If unexpected, repeat careful puck preparation before changing pressure settings |
| Low at first, then rises as brewing starts | Whether the machine uses low-pressure pre-infusion | Compare the later extraction stage with the manual |
| Repeatable flow and pleasant coffee | Whether the reading is within the model’s expected behavior | Keep the recipe; investigate a new or out-of-range gauge reading separately |
The combination matters. A low needle with rushing coffee does not prove a failing pump, and a high needle does not tell you how evenly the coffee extracted.
If Espresso Pressure Is Too Low
If espresso rushes into the cup, weigh the dose before adding more coffee. Use an amount that fits the basket. With a suitable dose and repeatable preparation, a small finer-grind test is useful; compare at the same beverage weight so a larger serving does not confuse the result. The fast-shot guide covers the next adjustments.
Did the change begin with a new basket? A dual-wall or pressurized basket adds its own flow restriction, while a single-wall basket relies more on the prepared coffee. Switching between them can change both flow and the gauge reading; follow the basket’s intended setup instead of copying the previous grinder setting.
If little water appears, check that the filled tank is seated correctly and the machine has completed its ready cycle. If the manual specifies a short group-flush check with the portafilter removed, use it to check water delivery separately from the basket and coffee. Weak or absent flow in that check will not be solved by more coffee or a finer grind. Follow the model’s water-supply or priming checks, then contact support if they do not restore flow.
If Espresso Pressure Is Too High
A high reading paired with a choked shot points you toward resistance. After releasing pressure, check the basket for blocked outlets and confirm the dose suits its capacity. A recently changed grinder setting is another useful clue. If those checks are sound, move a small amount coarser while keeping dose and target beverage weight steady.
Keep your tamp level and consistent rather than trying to control the gauge by tamping harder or softer each time. Our slow-shot troubleshooting guide explains basket checks and the next grind test.
An unusually high reading that persists with normal flow, appears during idle or warm-up, or falls outside the manual’s limits needs the manufacturer’s interpretation. Do not apply an extraction target to an idle reading or adjust an internal pump or over-pressure valve to force the needle into a familiar position.
If Pressure Drops During the Shot
First check whether the machine or lever routine intentionally reduces pressure. On a flow-controlled profile, pressure can fall as the coffee offers less resistance. That is different from an unexpected collapse in a previously steady shot.
If the drop coincides with sudden acceleration, spraying or uneven flow, repeat the same basket, measured dose and yield with careful distribution and a level tamp. These clues justify checking espresso channeling; the gauge alone does not prove it.
A new drop accompanied by loss of water flow, a new leak or an error message belongs with the machine’s support instructions. Note when it happens and record a short video of the gauge and cup for the technician.
Frequently Asked Questions
Should Pressure Rise When I Run Water Without Coffee?
Not necessarily. Pressure depends on flow meeting resistance, and an open group flush is not the same load as a coffee puck. An empty single-wall basket is also different from an empty pressurized basket. Judge a permitted flush by the model’s instructions; do not use it as a universal pump-pressure test. Any further pressure test should be the one specified for your exact model.
My Breville or Sage Pressure Gauge Stays in the Pre-Infusion Zone. What Should I Check?
Distinguish low pressure during initial pre-infusion from a reading that stays low throughout extraction. If coffee runs fast, check basket, dose and grind. If little or no water arrives, use the water-flow branch above. Use your exact model’s gauge instructions for any further test.
